UNISAT-6 Mission

UniSat-6 Mission Logo

Characteristics

UniSat-6 is a civilian scientific satellite, mainly intended for customer’s equipment testing in space conditions. The satellite has a total mass of 26 Kg and it has been built in Italy.

UniSat-6 was launched on the 19th of June 2014 at 21:11:11 CET from Dombarovsky Cosmodrome at the Yasny launch base (in Russia) on board a DNEPR-1 rocket from the company Kosmotras, and it entered into Sun Synchronous orbit 16 minutes later. Communications with ground controllers were acquired 90 minutes after launch when passing over Italy.

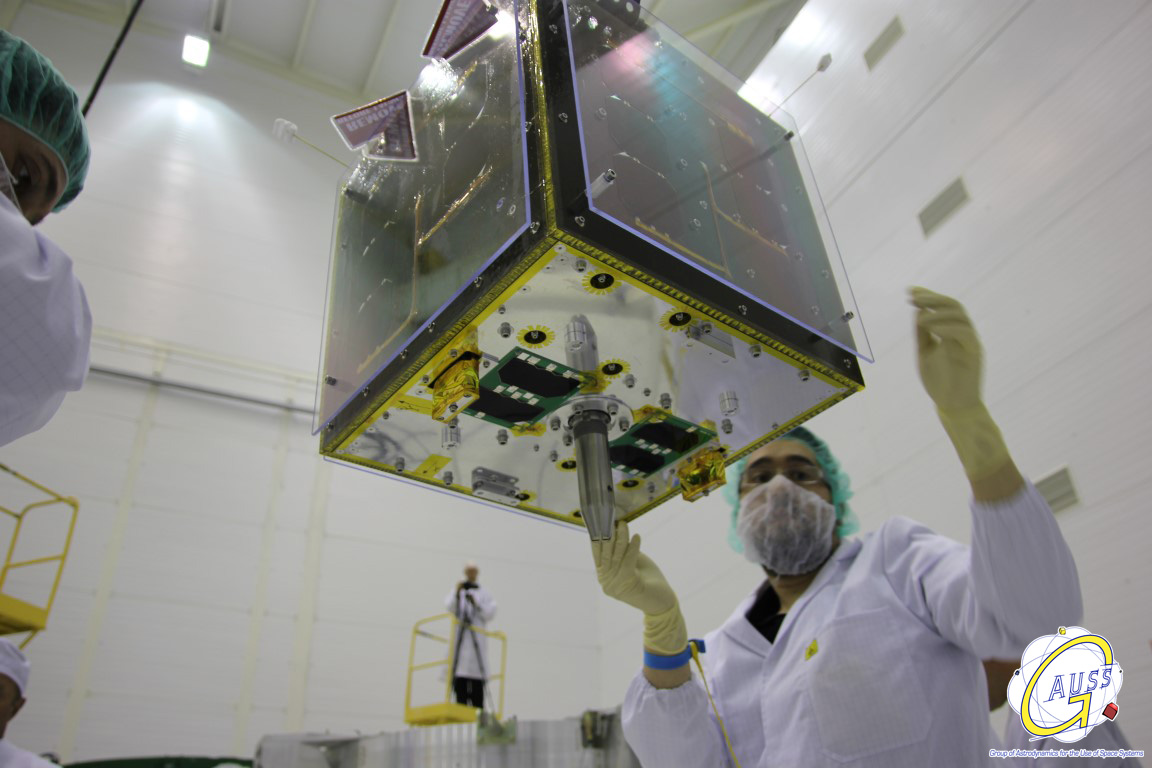

UniSat6_ready_for_launch

                             UniSat-6 during launch integration activities

Concerning the satellite design: UniSat-6 is based on the UniSat-5 satellite platform built in reinforced aluminum and carbon fiber honeycomb panels. It measures 40 cm × 40 cm × 40 cm in size with a weight of 26 kg. Thermal range was designed to be between -10 to 10 degrees. Power is provided by body-mounted solar panels, which provide from 11 W (4 sides) to 5W (bottom) of electrical power. The satellite has a passive attitude control system, which uses permanent magnets designed to keep the satellite spin stabilized from 5 to 10 degree per second. Command uplink and data downlink is provided by an UHF communication system.

Orbital parameters

  • Sun Synchronous Orbit
  • 700 to 610km height
  • Period of revolution 5878s
  • Orbital inclination 97,98°
  • Sunlight: 70% of the orbit
  • 14 revolution per day
  • Revisit time: 1 week

UniSat-6 deployed the CubeSats Tigrisat, Lemur-1, AntelSat and Aerocube 6 from two Pico-Orbital Deployers (Tyvak) and one GPOD (GAUSS Picosatellite Orbital Deployment). The deployment of the satellites took place 25 hours and 38 minutes after the launch and it was initiated by an autonomous system with a dedicated battery. Confirmation of the deployment was given 15 minutes after release when the satellite passed over ground stations in Italy.

UniSat-6 has onboard a 3Mpx telecamera with a maximum resolution on ground of 400m per pixel. This camera was used to take a picture of the CubeSats after their release and to take Earth imaginary and to develop and train ground operators in the process of Earth Observation.

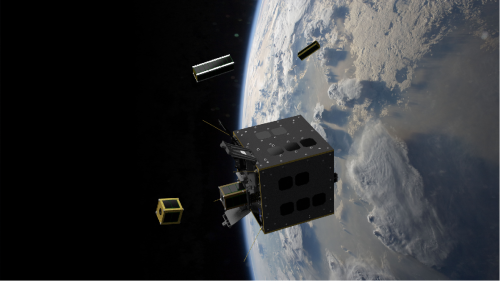

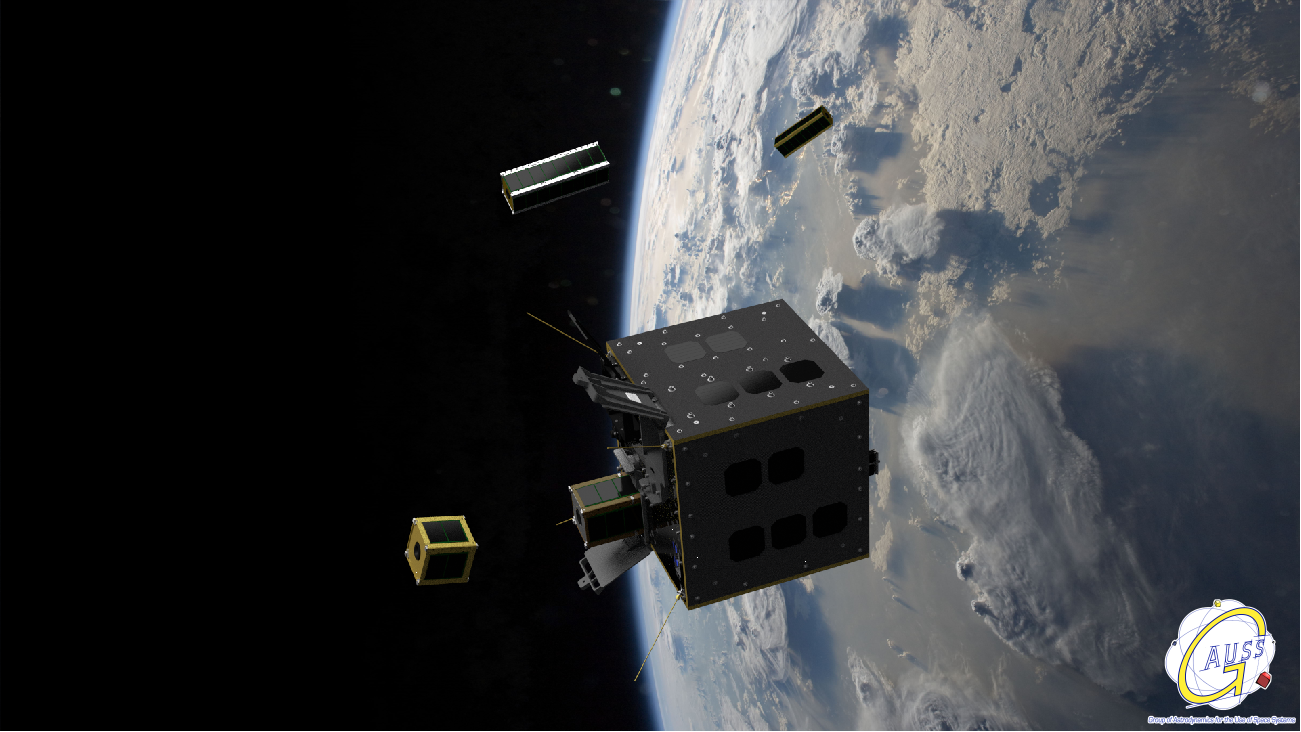

UniSat-6 Render

                      UniSat-6 Render of the deployment of the CubeSats

Payloads

Cluster Mission of 32 satellites (37 considering the payloads of UniSat-6).

UniSat-6 hosted four CubeSats that were deployed 25 hours and 38 minutes after the separation from the Dnepr Launch Vehicle:

  • Tigrisat: A 3U CubeSat satellite built by Sapienza University of Rome with the support of Iraqi students during an 18 month high level course at the Scuola di Ingegneria Aerospaziale.
  • LEMUR-1: A 3U CubeSat satellite built by NanoSatisfi Inc. (now Spire)
  • AntelSat: built by the Uruguayan Facultad de Ingeniaría de la Universidad de la República, ANTEL and the State Faculty of Engineering. It is the first Uruguayan satellite.
  • AeroCube6: It is a 1U CubeSat developed and operated by Aerospace Corporation.

Mission Objectives

UniSat-6 has been conceived in order to:

  • Release four CubeSats into orbit
  • Test electronic hardware for microsatellites/structural components in orbit
  • Test UNISAT new space satellite bus
  • Test ground segment equipment and software
  • Test ground segment procedures
  • Earth Observation operations with camera
  • Test ground segment procedures for future Earth Observation satellites

Video of UniSat-6 mission, from construction, test, to launch and ground operations

Results

This relevant research achievement has allowed the Team to further study electronic components developed for microsatellites and then to gather data useful to understand a satellite behaviour when in orbit.

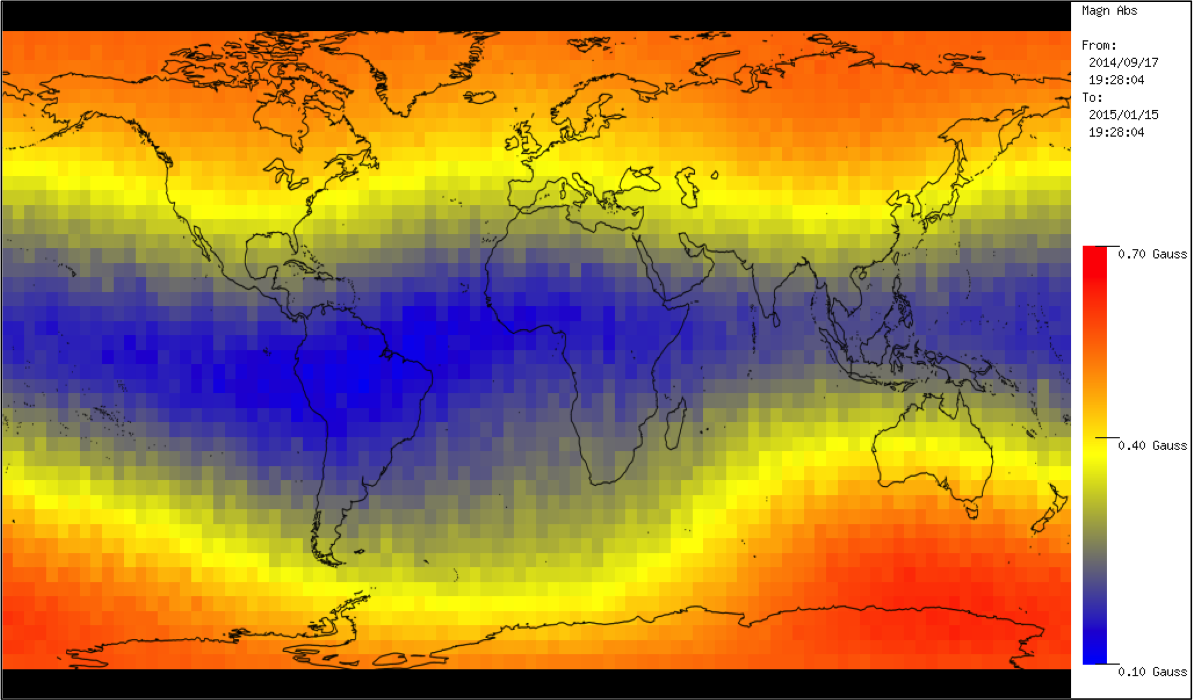

Earth Magnetic field as measured by UniSat-6

                    Earth Magnetic field as measured by UniSat-6

UniSat-6 has been regularly operating since entering into orbit and the ground station in Rome managed to establish a two-way effective communication with it a few minutes after launch. The communication goes through the hardware onboard, like the new OBC ABACUS that uses a CubeSat form factor (PC104) and that has been developed at the School of Aerospace Engineering (“La Sapienza” University of Rome) in collaboration with GAUSS Srl.

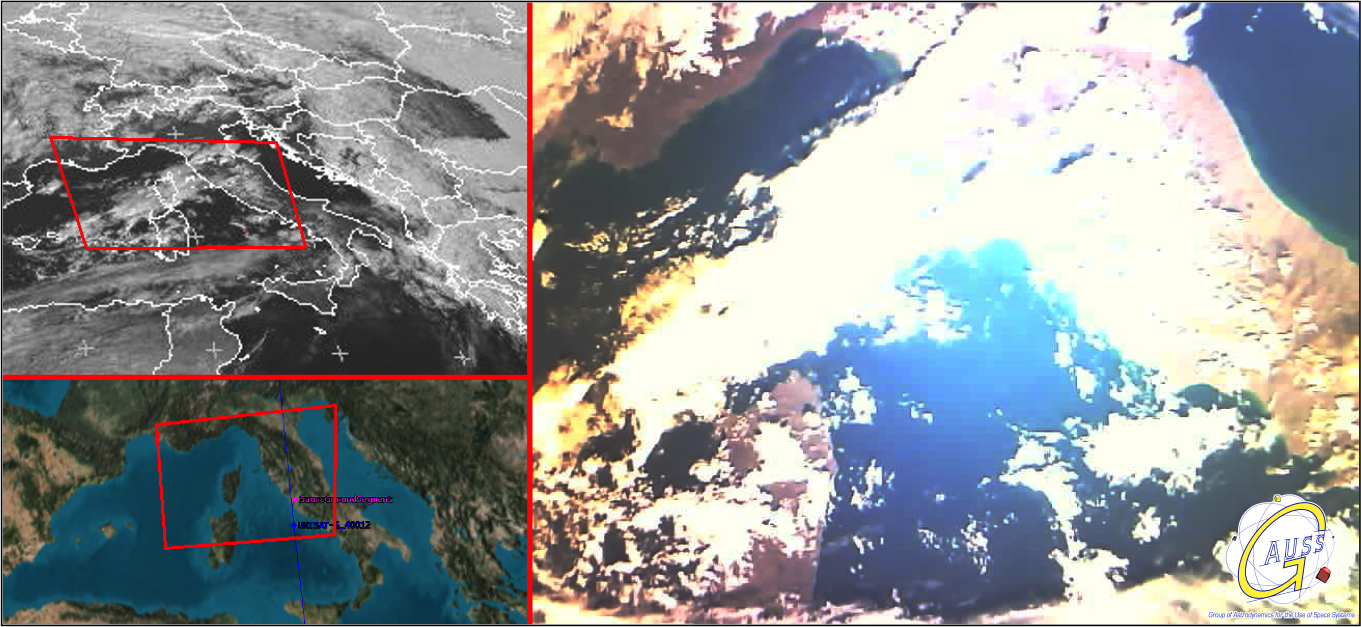

UniSat6 Image adquisition of Italy (right), compared to a meteosat picture simultaneously (top left) and satellite position during picture adquisition (low left).

UniSat6 Image acquisition of Italy (right), compared to a meteosat picture simultaneously (top left) and a satellite position during picture acquisition (low left).

Some of the pictures of the satellite are gathered in the photo gallery.

These images show some of the telemetry generated by the satellite during its first 8 months in orbit:

UniSat6_Sensor_Acquisition

UniSat6 angular speeds. UniSat 6 is spin stabilized on X axis.

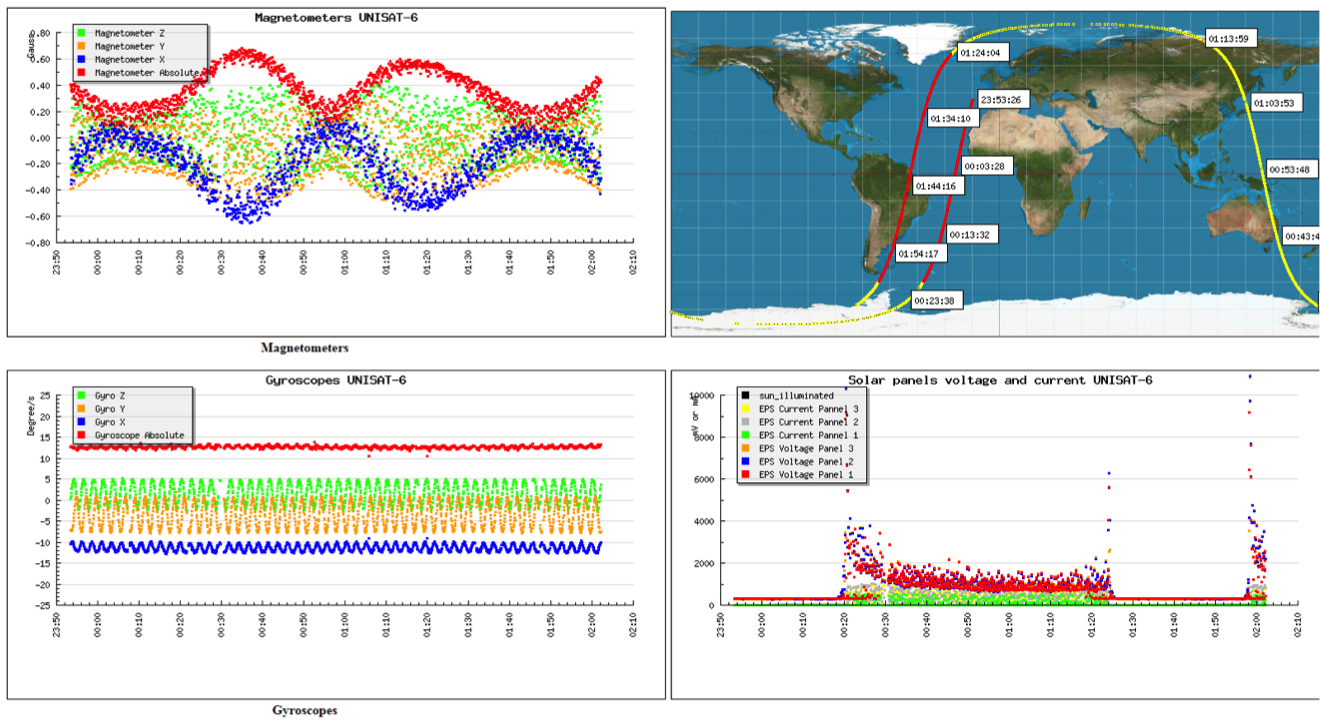

UniSat6_Sensor_Acquistion

UniSat6 magnetometers (top left), gyroscopes (low left), Input power (low right) and ground track (top right) on 2 hours time frame.

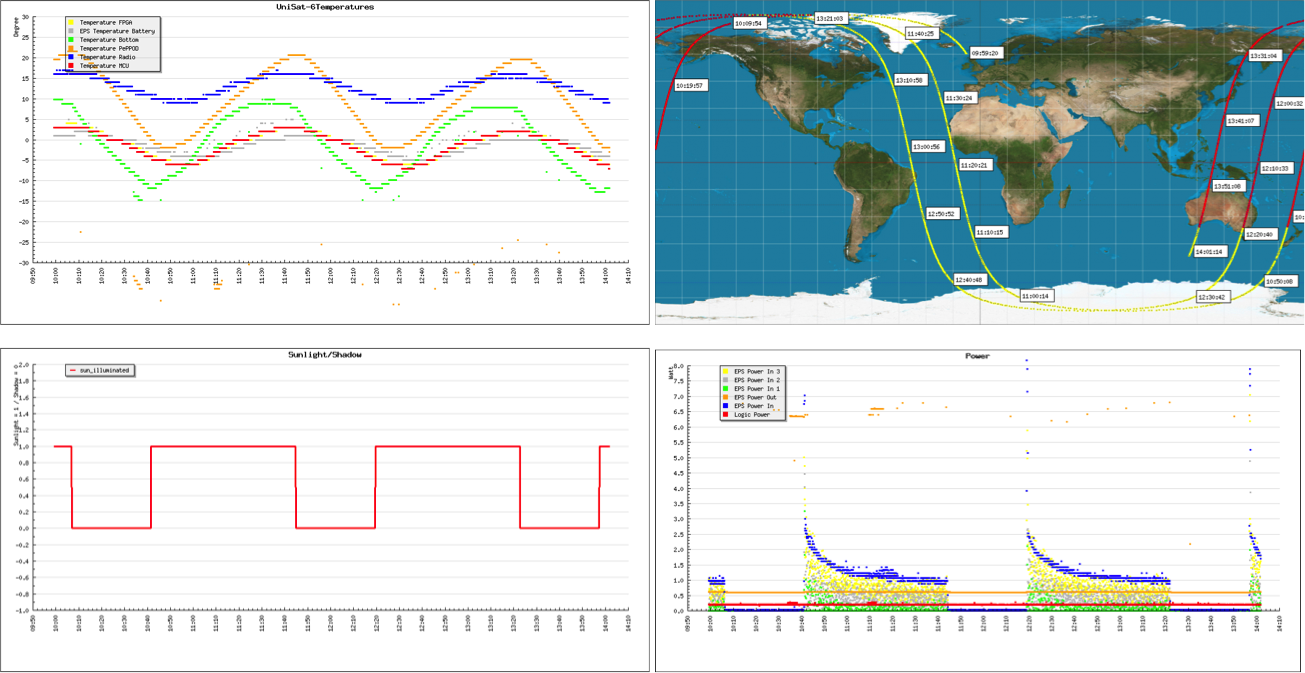

UniSat6_Sensor_Acquisition

UniSat6 temperatures (top left), Sun light (low left), Power (low right) and ground track (top right) on 2 orbits.
